Tiertime X5 3D Printer

Elevate Your 3D Printing Experience with the Tiertime X5 3D Printer!

The Tiertime X5 is a breakthrough in 3D Printing, designed from scratch for low-volume manufacturing. Capable of automatically feeding up to 12 plates onto its build platform, as well as reloading during printing, providing a continuous 3D Printing experience.

Learn More Order Printer Now!



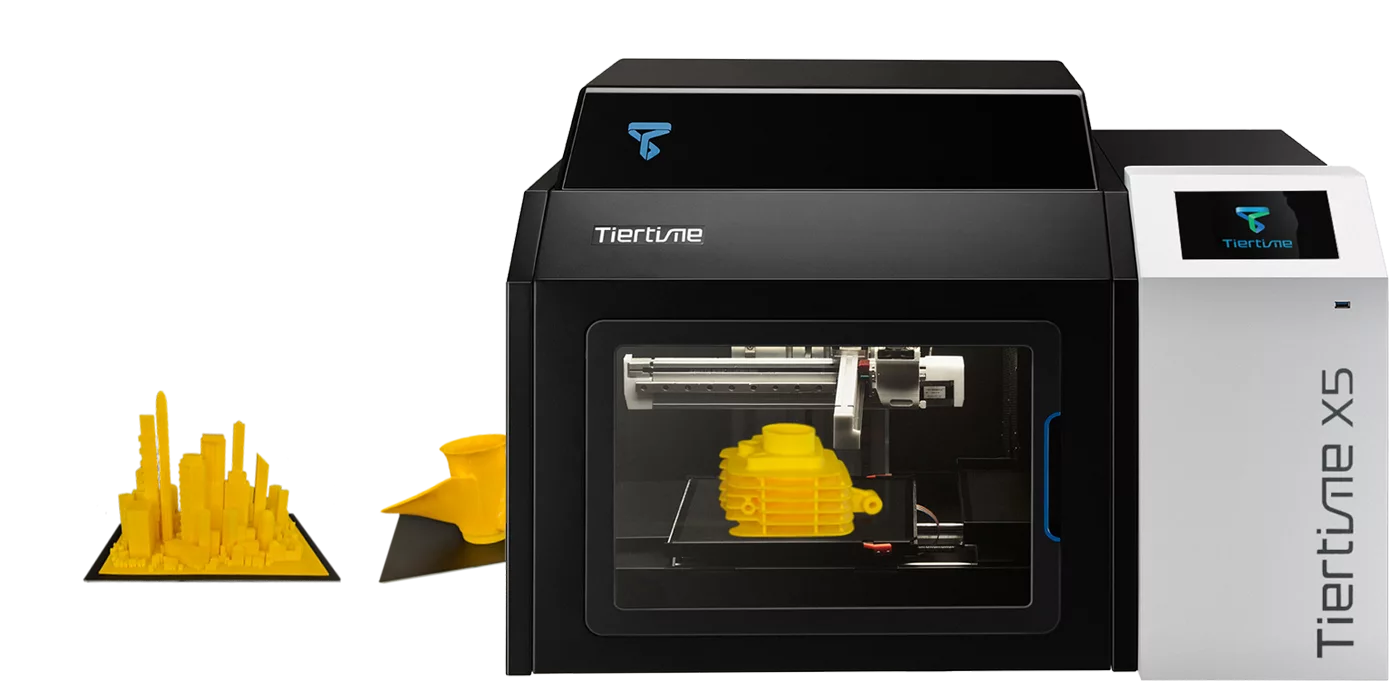

Introducing Tiertime X5 3D Printer

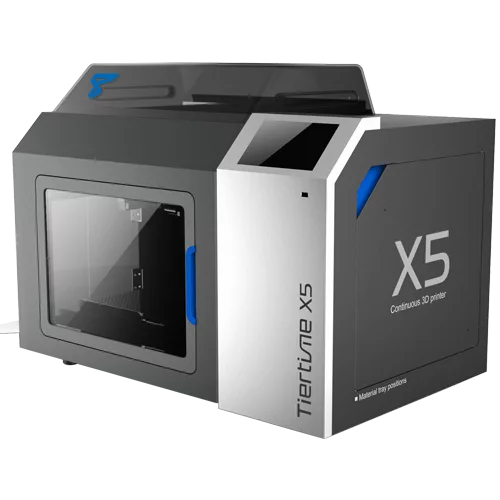

The X5 Contin-U-Print – Made for Manufacturing

The new X5 is an automated 3D manufacturing printer, transforming your workspace into a continuous printing production line. The X5 is designed with the business and education industry in mind, for schools that require the printing of various and multiple parts per week. Users have the ability to spool their print jobs to the integrated print queue.

Order Tiertime X5 3D Printer Now!

Why Choose Tiertime X5 3D Printer?

Short-Run Workhorse



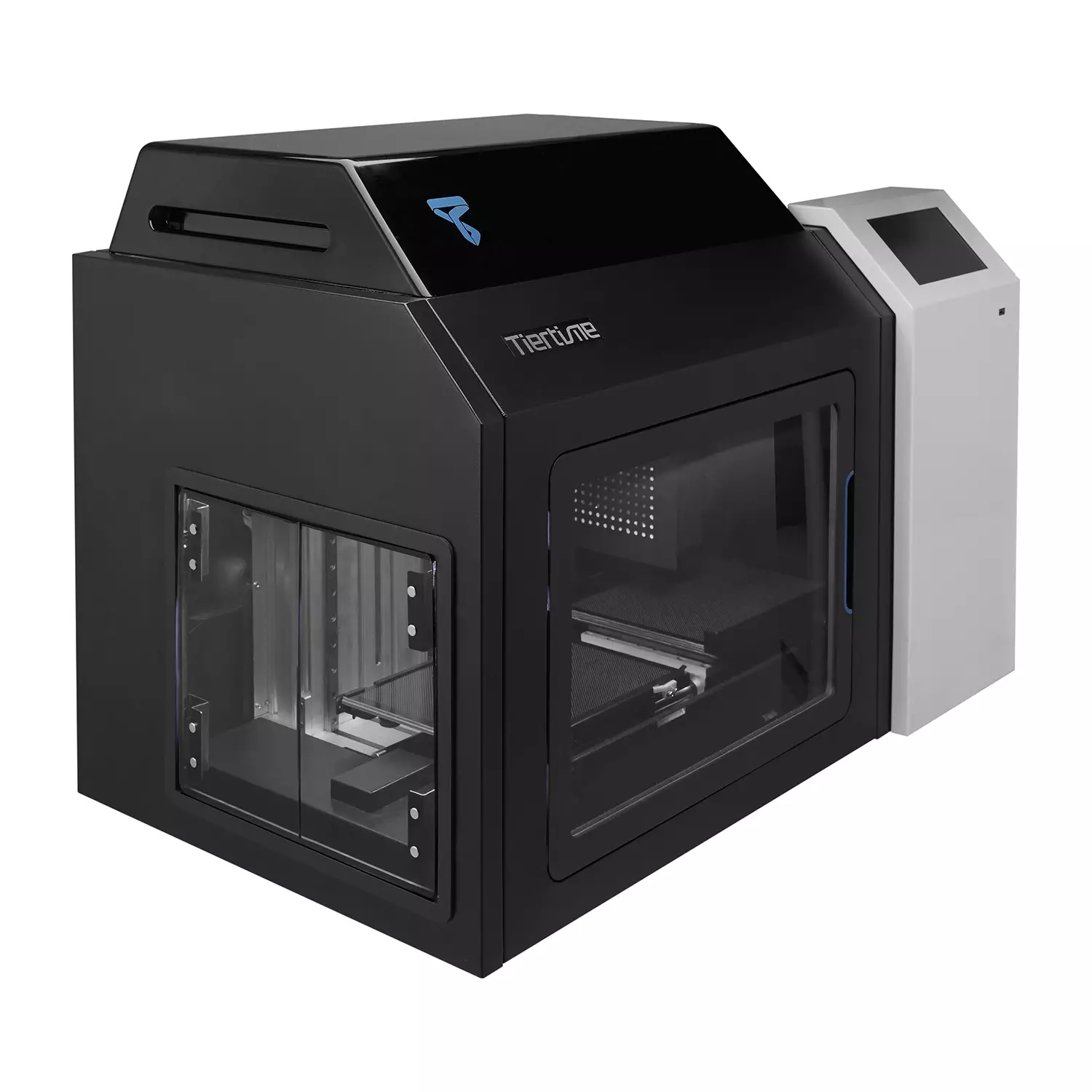

Auto-Swapping Build Plate + Tiertime Print Queue

The X5 printer features an auto-swapping print platform system, automatically loading new build plates onto the platform once a previous print job has completed printing. The plate vault is accessible from a side door, meaning yesterday’s print beds can be cleaned and reinserted in the vault stack while the printer is busy with a print job.

The new Tiertime Print Queue provides for a software controlled, multi-part production solution.

When printing, and a print job is completed, that plate is pushed out of the X5 and replaced by a plate from the printers vault, ready for the next print job. The X5 printer has a filament spool capacity of 2kg.



7-Inch LCD Touchscreen and Clear Top Cover

Observing how your print job is being created has never been easier, the X5’s large LCD screen reports your print queue progress as well as a transparent top makes for visual build confirmation effortless, giving you total control.



3 USB Ports Available for Project Work

One USB port is loading print jobs stored on a USB memory stick. Another for computer connectivity, and a last USB port for optional add-ons like a USB camera for remote print monitoring.



Dual Filtration System Built-in

Manufacturing with plastic doesn’t have to be unhealthy for equipment operators. The X5 includes Tiertime’s 2018 air filtration system, specifically designed for large build chambers. Air is recirculated through separate HEPA and activated carbon filters, radically reducing toxic UFP and VOC emissions.

Order Tiertime X5 Printer Now!

Technical Specifications



Printing Technology

MEM (Melted Extrusion Modelling)



Extruder

Single



Build Volume

180 x 230 x 200mm (X,Y,Z)



Nozzle Diameter

0.2mm, 0.4mm, 0.6mm



Layer Resolution

0.05/0.1/0.15/0.2/0.25/0.3/0.35/0.4



Extruder Max Temp

299°C



Extruder Max Speed

200 mm/sec



XYZ Accuracy XYZ

2, 2, 0.5 micron



Connectivity

USB cable, Wi-Fi, LAN and USB Stick



Touch Screen

7″ colour LCD screen



Print Object Accuracy

±0.1mm/100mm



Build plate Max Temp

100°C



Calibration & Leveling

Manual Calibration and Leveling



Print Surface

UP Perfboard, Heated



Enclosure

Full



Dual Filtration System

HEPA and active carbon filters



Print Resume on Power Interrupt

Yes



Pause to change filament

Yes



Out of filament detection

Yes



Filament Compatibility

UP Fila ABS, ABS+, PLA, TPU and more



Filament Diameter

1.75mm



Filament Spool Compatibility

500g – 2000g



Filament Spool Holder Compatibility

500g – 1000g



Warranty

12 month warranty
