EinScan HX 3D Scanner

Elevate Your 3D Printing Experience with the EinScan HX 3D Scanner!

EinScan HX is a next generation 3d scanner with a hydrid blue LED and infrared light source handheld color 3d scanner. Portable and comfortable this scanner is a truly versatile product to meet the multitude of user needs out there in the 3d industry.

Learn MoreOrder Printer Now!

Introducing EinScan HX 3D Scanner

Portable & Comfortable – Full Color Hydrid Blue Laser LED Light Sourse

Based on years of 3D measurement experience and market demand, SHINING 3D innovatively integrates blue LED light and blue laser into EinScan HX handheld 3D scanner. The hybrid laser and LED light sources make EinScan HX compatible with a wider range of object sizes, meeting multiple needs of users. High efficiency and reliable result give EinScan HX more application possibilities.

Why Choose EinScan HX 3D Scanner?

Reliability | Efficient | Portable

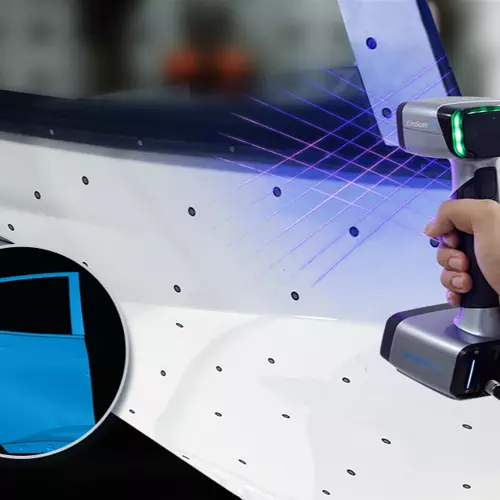

Hybrid Blue Laser & LED Light Source

Innovatively integrated with dual blue LED light and blue laser, improves scanning materials adaptability with less limitation for a wider range of applications. LED light scanning allows rapid 3D scanning. Laser scanning, which is less sensitive to ambient light, gives better performance to reflective and dark color surface.

3D Scanner with Reliable Results

The high resolution and accuracy meet the needs of most industrial applications for reverse engineering and measuring.

Minimum point distance 0.05 mm

Accuracy up to 0.04 mm under Laser Scan

3D Scanner with a High Efficiency

Innovatively integrated with dual blue LED light and blue laser, improves scanning materials adaptability with less limitation for a wider range of applications. LED light scanning allows rapid 3D scanning. Laser scanning, which is less sensitive to ambient light, gives better performance to reflective and dark color surface.

Portable & Easy Operation 3D Scanner

EinScan HX is plug and play with user friendly software, which is easy to operate, no matter you are newbie or with professional experience in 3D scanning. The portability and flexibility use of EinScan HX has been considered to its ergonomic design for a more efficient and comfortable scanning experience.

Ergonomic Design

Weight:710g

A Portable Full Color 3D Scanner

With built-in color camera, it supports full color texture capturing and tracking by texture.

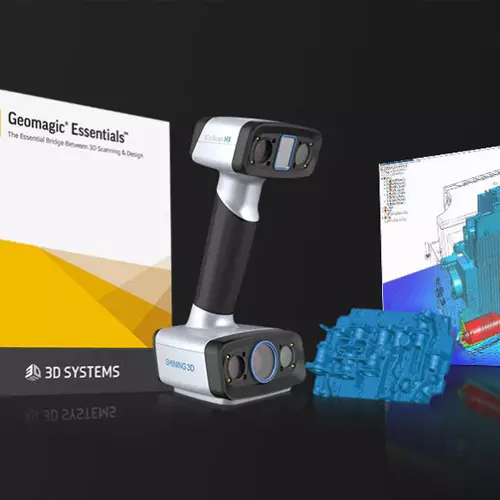

Einscan HX Reverse Engineering Design Bundle

A hybrid light source 3D scanner with reverse engineering and CAD capabilities.

Technical Specifications

ï•

Scan Mode

Rapid Scan: Up to 0.05mm

Laser Scan: Up to 0.04mm

ï•

Scan Accuracy

Rapid Scan: Up to 0.05mm

Laser Scan: Up to 0.04mm

ï•

Volumetric Accuracy*

Rapid Scan: 0.05+0.1mm/m

Laser Scan: 0.04+0.06mm/m

ï•

Scan Speed

Rapid Scan: 1,200,000 points/s, 20FPS

Laser Scan: 480,000 points/s, 55FPS

ï•

Camera Frame Rate

Rapid Scan: 55FPS

Laser Scan: 55FPS

ï•

Align Mode

Rapid Scan: Feature Alignment, Markers

Alignment, Texture Alignment, Hybrid

Alignment.

Laser Scan: Markers Alignment

ï•

Working Distance

Rapid Scan: 470mm

Laser Scan: 470mm

ï•

Depth of Field

Rapid Scan: 200mm-700mm

Laser Scan: 350mm-610mm

ï•

Max FOV

Rapid Scan: 420mm*440mm

Laser Scan: 380mm*400mm

ï•

Point Distance

Rapid Scan: 0.25mm-3mm

Laser Scan: 0.05mm-3mm

ï•

Light Source

Rapid Scan: Blue LED

Laser Scan: 7 Blue Laser Crosses

ï•

Safety

Rapid Scan: Eye-safe

Laser Scan: Class 1 (Eye-safe)

ï•

Texture Scan

Rapid Scan: Yes

Laser Scan: No

ï•

Connection Standard

USB3.0
ï•

Output Formats

OBJ;STL;ASC;PLY;P3;3MF
ï•

Dimensions

108mm x 110mm x 237mm
ï•

Weight

710g
ï•

Operating Temperature Range

0-40℃
ï•

Operating Humidity Range

10-90%
ï•

Certifications

CE, FCC, ROHS, WEEE, KC
ï•

Recommended Configuration

OS:Win10,64 bit;Graphics card: NVIDIA

GTX/RTX series cards,higher or equal to GTX

1080;Video memory:≥4G;Processor:I7-

8700;Memory:≥32GB

ï•

Software

Software for the EinScan H can be

downloaded here:

Check & Download Software

ï•

Noise level

Documentation & Manuals for the

EinScan H coming soon:

Check Documentation

Conclusion

When it comes to printers the EinScan HX 3D Scanner is ideal for businesses, Engineers, Designers, Architects, and Schools for their printing requirements.
