EinScan H 3D Scanner

Elevate Your 3D Printing Experience with the EinScan H 3D Scanner!

EinScan H is the HX improved 3d scanner with a hydrid blue LED and infrared light source handheld color 3d scanner. Portable and comfortable this scanner is a truly versatile product to meet the multitude of user needs out there in the 3d industry.

Learn MoreOrder Printer Now!

Introducing EinScan H 3D Scanner

Portable Scanning & Comfortability – Full Color Hydrid Laser LED Light Sourse

With strengths of technical accumulation on 3D vision technology in more than a decade, SHINING 3D is now introducing its new developed handheld 3D scanner, EinScan H. Based on hybrid structure light technology of LED and invisible infrared light, EinScan H is making human face scanning more comfortable without strong light. With a built-in color camera and large field of view, EinScan H provides high quality 3D data with full color ready-to-use in minutes.

Why Choose EinScan HX 3D Scanner?

Reliability | Efficient | Portable

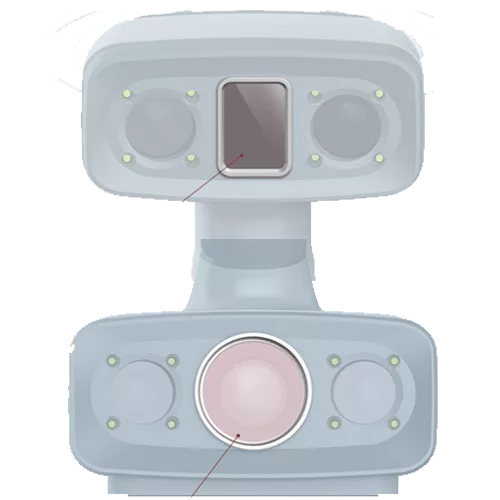

Infrared & Structured Hybrid Light Source

Hybrid structure light source technology integrating LED structured light and invisible infrared light into one device and adding advanced smart presetting in different scan modes allows 3D scanning in a broad range of applications and promotes the popularization of portable 3D scanning technology.

The Era of Scanning with Hair Acquisitio

The invisible infrared light source provides a reliable solution to the problem of acquiring dark-coloured objects and enables an easy acquisition of human hair.

Invisible Light 3D Scanning Experience

The new face scanning mode adopts invisible infrared light, enabling a safe and comfortable scanning process.

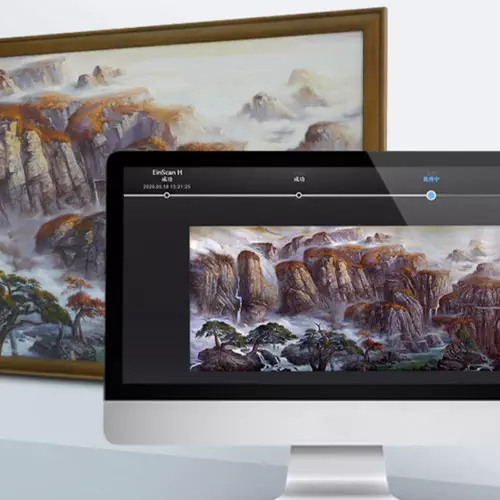

Fine Details

Impressive high resolution reaches 0.25 mm, EinScan H captures full geometry of objects such as artwork or furniture with fine details .

The high accuracy of scanned data up to 0.05 mm and volumetric accuracy 0.1mm/m improves the precision of 3D modeling in a dense points cloud or polygon meshes.

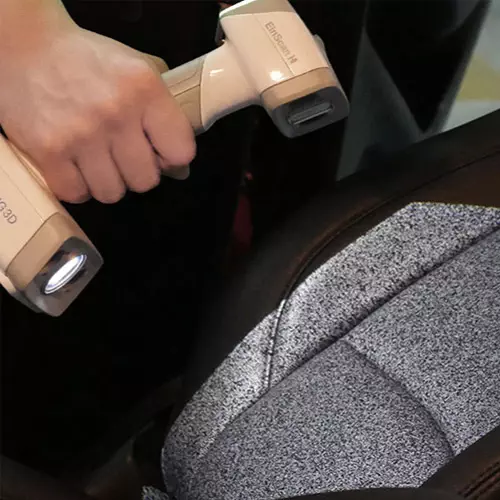

Fast Scanning

Scan speed up to 1,200,000 points/s and large scan FOV of 420*440 mm ensure fast 3D scanning of large size objects. The optimzied alignment algorithm enables efficient alignment despite small movements of the scanned object or person.

Take the Portable EinScan Pro HD Anywhere You Go

The built-in color camera supports full color texture capturing and tracking by texture.

Technical Specifications

* Volumetric accuracy refers to the relationship between 3D data accuracy and object size; the accuracy is reduced by 0.1mm per 100cm(standard scan & body scan). The conclusion is obtained by measuring the center of sphere under marker alignment.

Scan Modes

Standard Scan

Body Scan

Face Scan

Light Source

Standard Scan: White Light, visible

Body Scan: White Light, visible

Face Scan: Infrared Light, visible


Standard Scan: LED light(eye-safe)

Body Scan: LED light(eye-safe)

Face Scan: CLASS І (eye-safe)

Scan Accuracy

Standard Scan: Up to 0.05mm

Body Scan: Up to 0.05mm

Face Scan: Up to 0.06mm

Volumetric Accuracy*

Standard Scan: 0.05+0.1mm/m

Body Scan: 0.05+0.1mm/m

Face Scan: N/A

Scan & Align Speed

Standard Scan: 1,200,000points/s, 20FPS

Body Scan: 1,200,000points/s, 20FPS

Face Scan: 720,000points/s, 20FPS

Camera Frame Rate

Standard Scan: 55 FPS

Body Scan: 55 FPS

Face Scan: 55 FPS

Align Modes

Standard Scan: Markers Alignment、

Feature Alignment、Hybrid Alignment、

Texture Alignment

Body Scan: Feature Alignment

Face Scan: Feature Alignment

Working Distance

Standard Scan: 470mm

Body Scan: 470mm

Face Scan: 470mm

Depth of Field

Standard Scan: 200-700mm

Body Scan: 200-700mm

Face Scan: 200-1500mm

Maximum FOV

Standard Scan: 420mm*440mm

Body Scan: 420mm*440mm

Face Scan: 780mm*900mm

Point distance

Standard Scan: 0.25mm-3mm

Body Scan: 0.5mm-3mm

Face Scan: 0.5mm-3mm

Point distance

Standard Scan: 0.25mm-3mm

Body Scan: 0.5mm-3mm

Face Scan: 0.5mm-3mm

Built-in Color Camera


Color Scanning


Connection Standard


Output Formats



(108mm) x (110mm) x (237mm)



Operating Temperature Range


Operating Humidity Range




Recommended Configuration

OS:Win10,64 bit

Graphics card: NVIDIA.

GTX/RTX series cards, higher or equal to

GTX 1080;

Video memory:≥4G




When it comes to printers the EinScan H 3D Scanner is ideal for businesses, Engineers, Designers, Architects, and Schools for their printing requirements.
