EinScan Pro HD 3D Scanner

Elevate Your 3D Printing Experience with the EinScan Pro HD 3D Scanner!

EinScan Pro HD 3d scanner is truly portable and versatile handheld 3d scanner for high-precision results. Impressive high resolution for fine detailed scanning, less limitations, fast scan speed for high efficiency.

Learn MoreOrder Printer Now!

Introducing EinScan Pro HD 3D Scanner

Easy | High-Quality | Potable | Efficient – Multi-Functional 3D Scanner

Inherited multi-functional and modular design of EinScan Pro series handheld 3D scanner, EinScan Pro HD delivers unparalleled performance in capturing high resolution and accuracy by handheld scanning. Exceptional versatility and powerful optimizations come together for the ultimate high-efficiency and professional-grade 3D scanning experience. It is reliable assistant for designers and engineers who care about high quality 3D modeling.

Why Choose EinScan Pro HD 3D Scanner?

Truly Portable and Versatile, High Resolution Handheld 3D Scanner

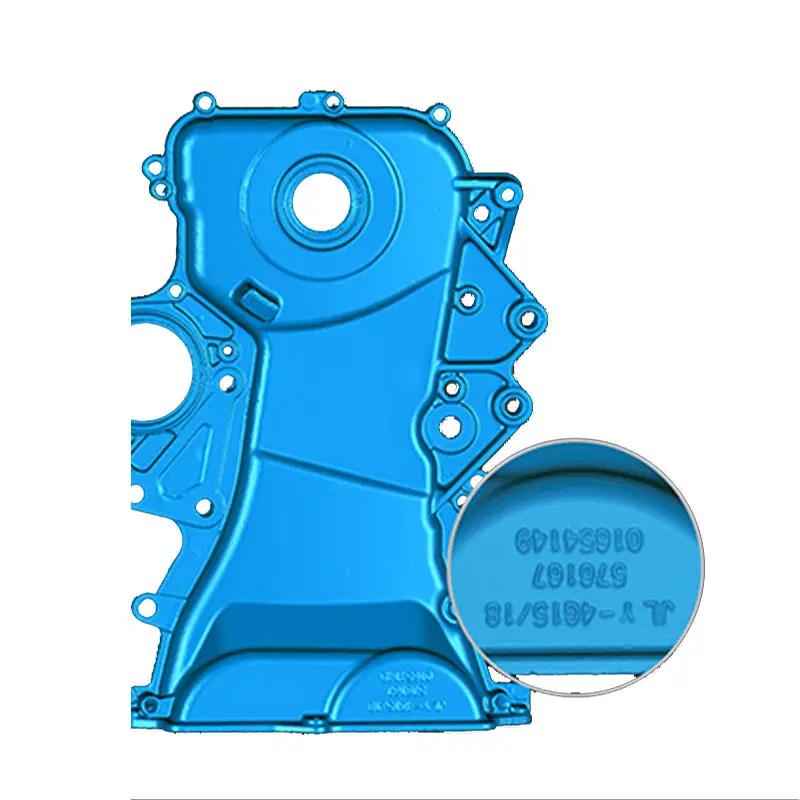

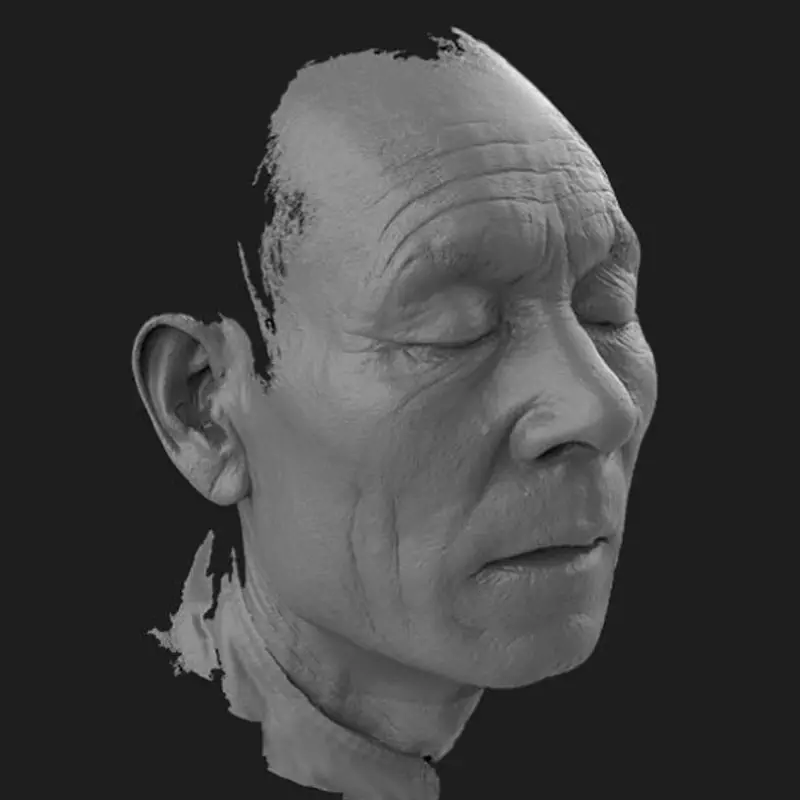

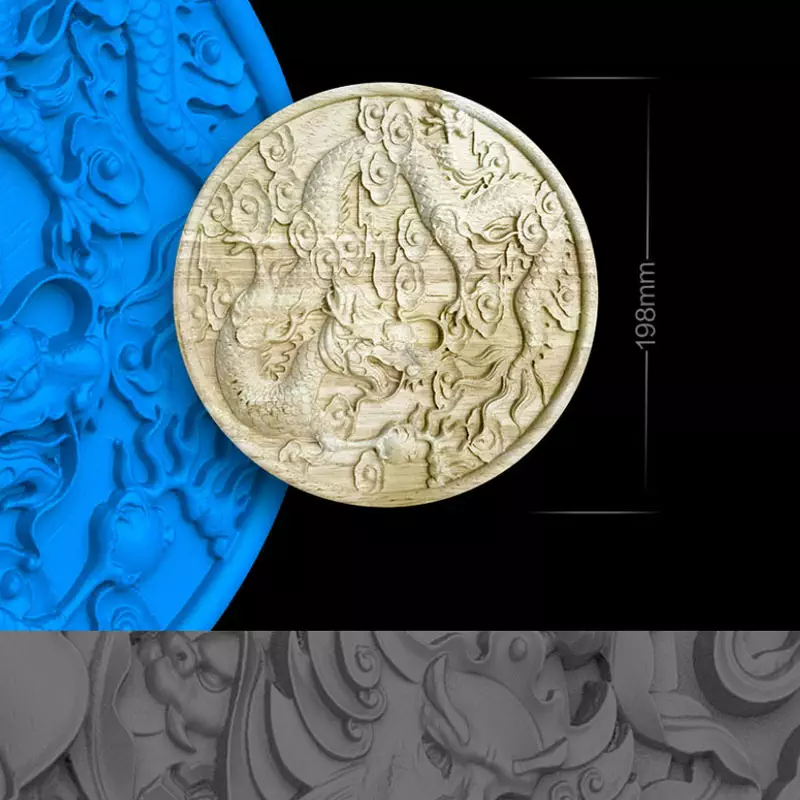

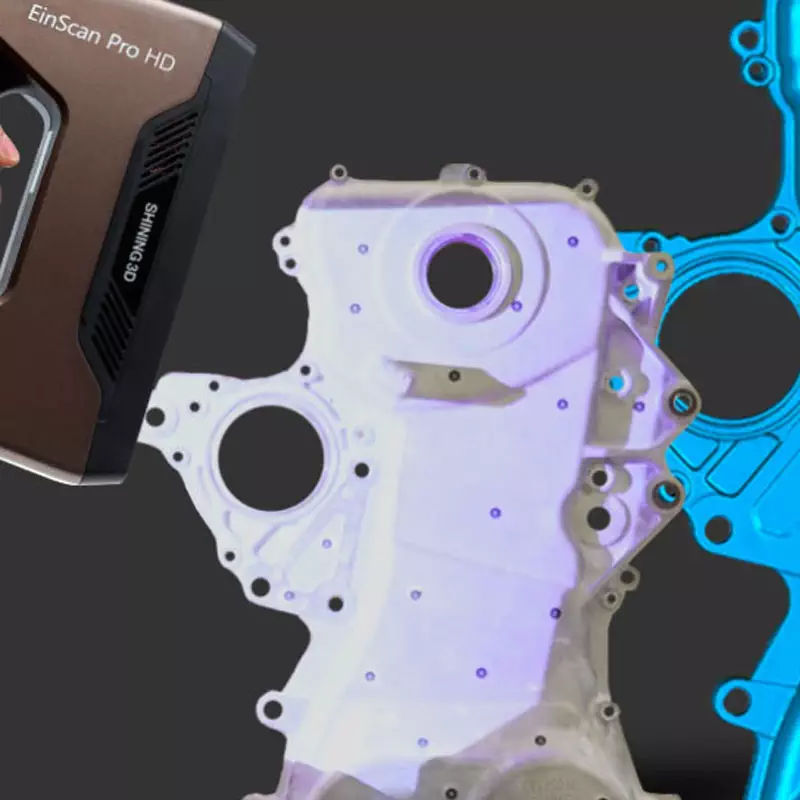

Impressive High Resolution for Fine Details

By adopting a new structure light projection modular, the stripe pattern scanning which was traditionally used in Fixed Scan Mode is now utilized to Handheld HD Scan Mode.

By 0.2mm minimum point distance setting with optimized algorithm, it brings high resolution and accuracy in handheld scanning as good as under fixed scan.

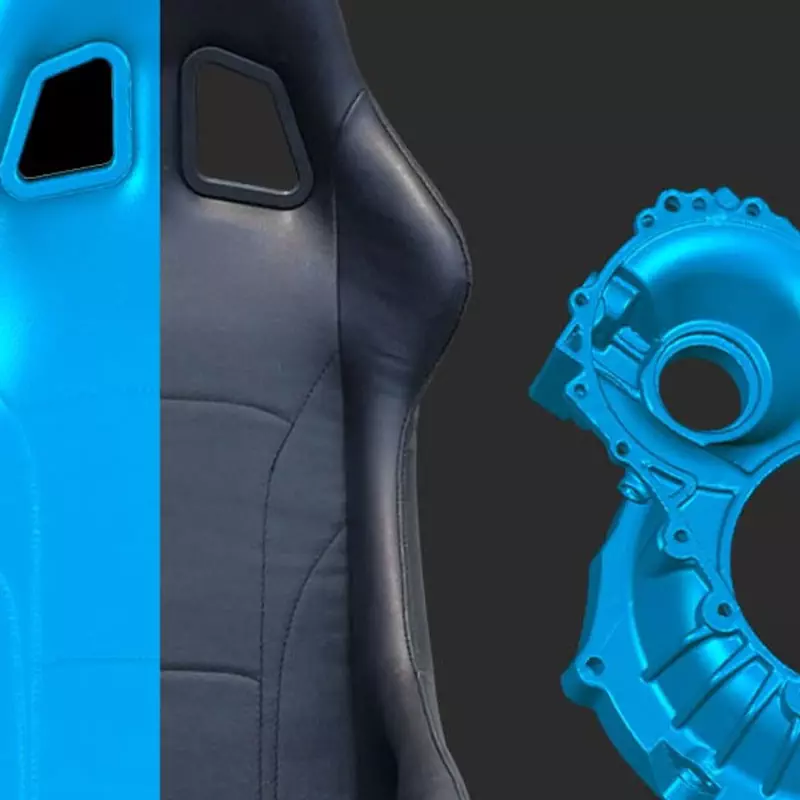

Less Limitations of Scan Objects

With new lighting projection hardware and software algorithm, EinScan Pro HD is capable to scan a wider range of objects of dark or black color and casting metal surface, enriching the capability for 3D scanning of materials.

Fast Scanning Speed and Data Transmissio

EinScan Pro HD has a dramatic breakthrough in scanning capability, processing up to 3,000,000 points per second under handheld scan mode, and less than 0.5s for every single frame in Fixed Scan Mode. USB 3.0 provides high speed data transmission.

High Accuracy for High Quality 3D Modelin

By kinds of positioning methods, both scanner or objects can be moved during scanning.
It delivers accuracy up to 0.04 mm
in Fixed Scan Mode. Under handheld scanning mode by marker alignment, the volumetric accuracy is up to 0.045mm+0.3mm/m.

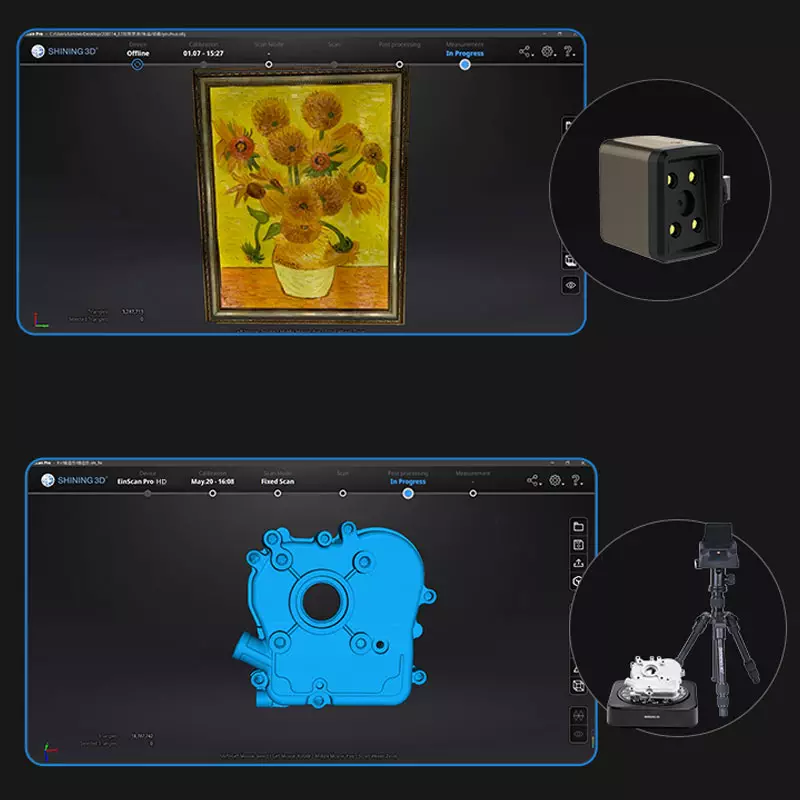

Modular Design for a Wide Range of Applications by Multi Scan Modes and Data Alignments

Modular designed Color Pack, Industrial Pack as optional add-ons to EinScan Pro HD extend your scanning experience for more applications. Multiple positioning methods, including feature alignment, marker alignment, turntable coded targets alignment, manual alignment and texture alignment (with Color Pack ) , greatly enhance the scanning efficiency without additional preparation.

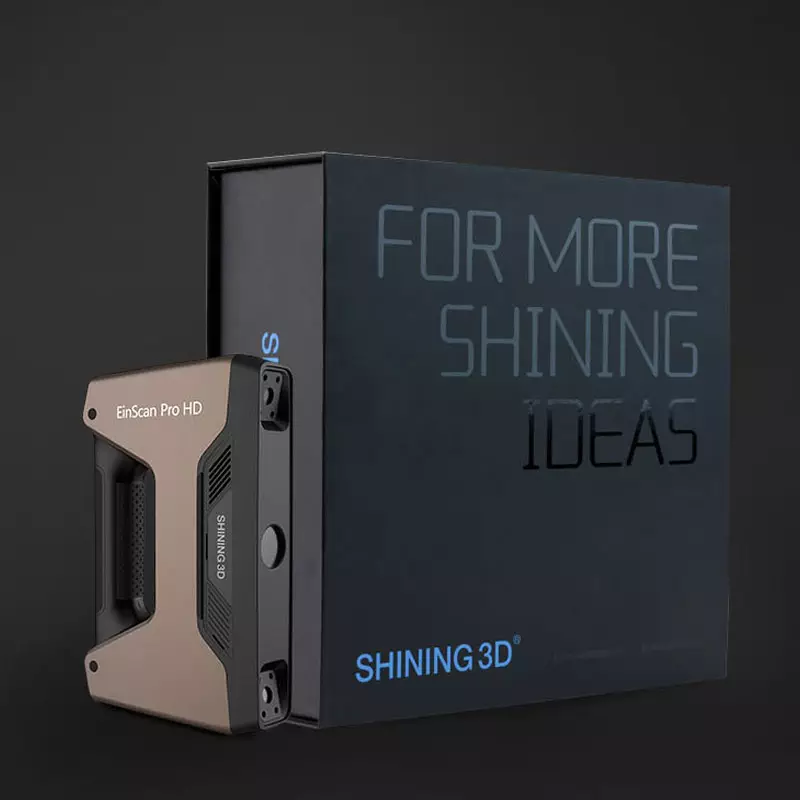

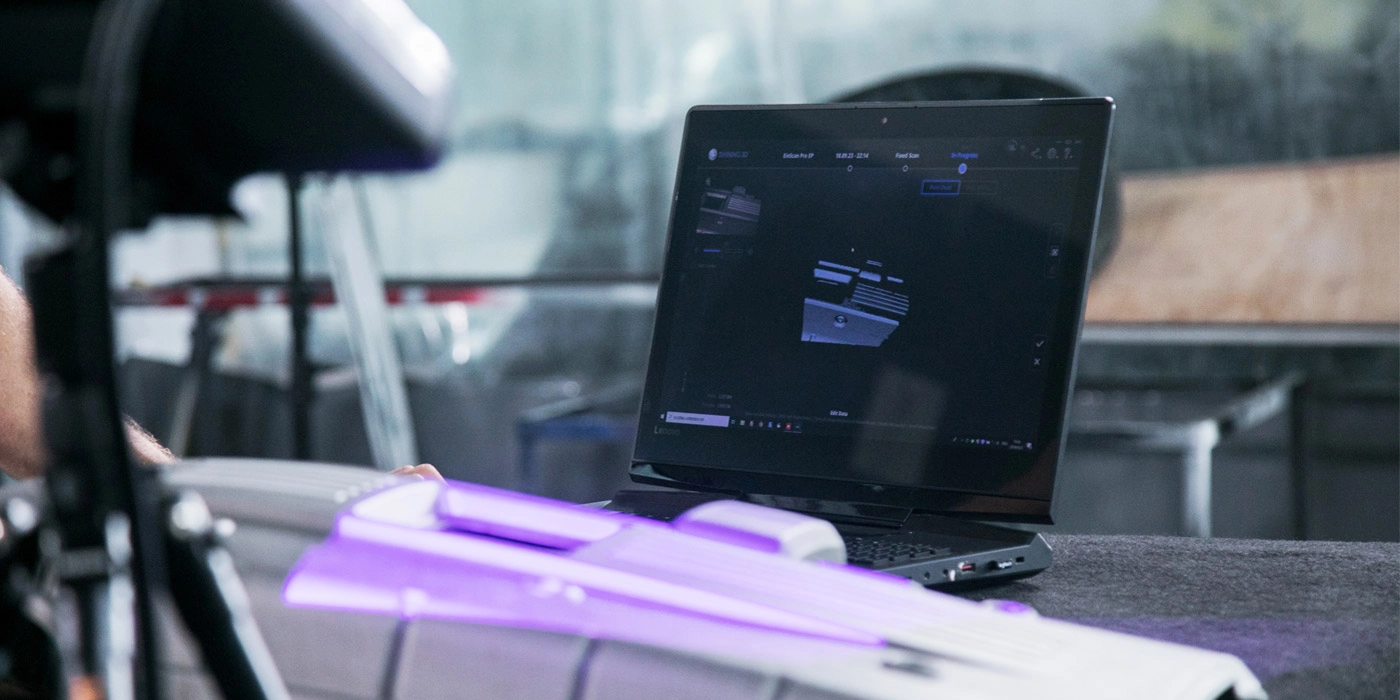

Take the Portable EinScan Pro HD Anywhere You Go

Ergonomic designed EinScan Pro HD with a light weight, you can easily take the scanner anywhere you go; easy plug-and-play let you run the scanner without complex installation; the compact size allows scanner moving freely with unlimited scanning experience.

(Package Size) | 37 x 36.5 x 13.5 mm
(Package Weight) | 1.13 kg

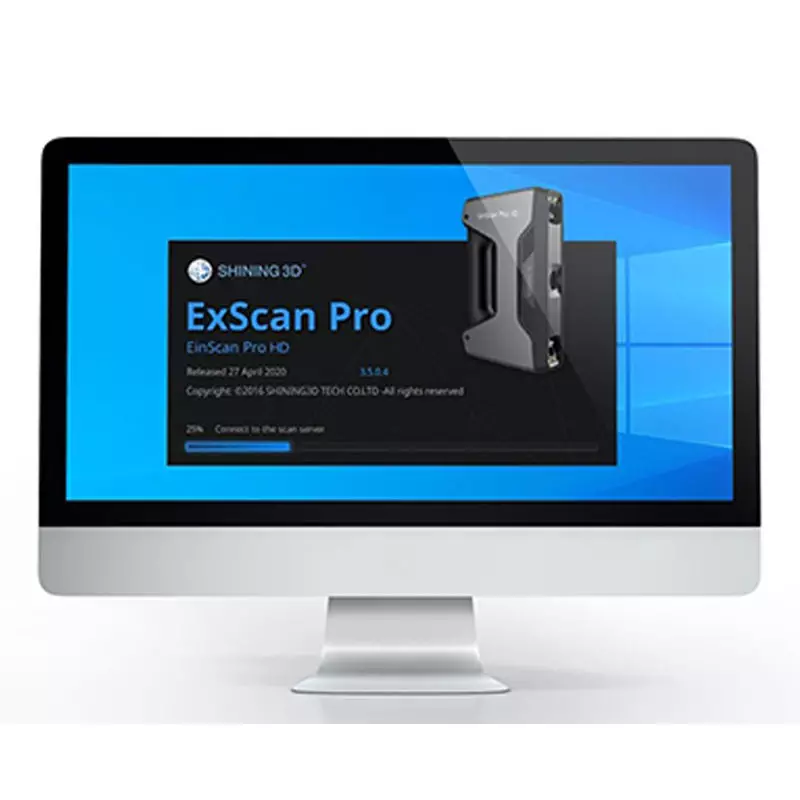

ExScan Pro Software

Developed by SHINING 3D, ExScan Pro is a professional software for 3D scanning and data processing with a collection of both scan and mesh editing tools for generating high-quality 3D models.

* Clear work guide process.
* User friendly interface.
* Data post processing.
* Data measuring.

Solid Edge SHINING 3D Edition

EinScan Pro HD, including Solid Edge SHINING 3D Edition with the mainstream 3D CAD design functions, brings a convenient and powerful 3D design tool to help achieve your creative ideas.

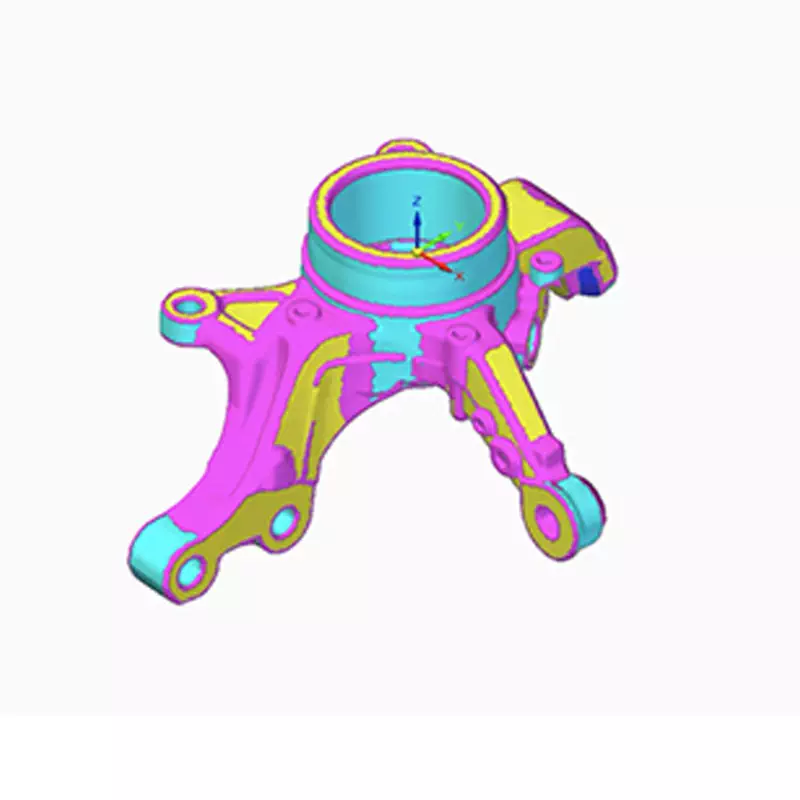

Accuracy of EinScan Pro Series Scanners

Factory tested accuracy according to VDI/VDE 2634 standards.

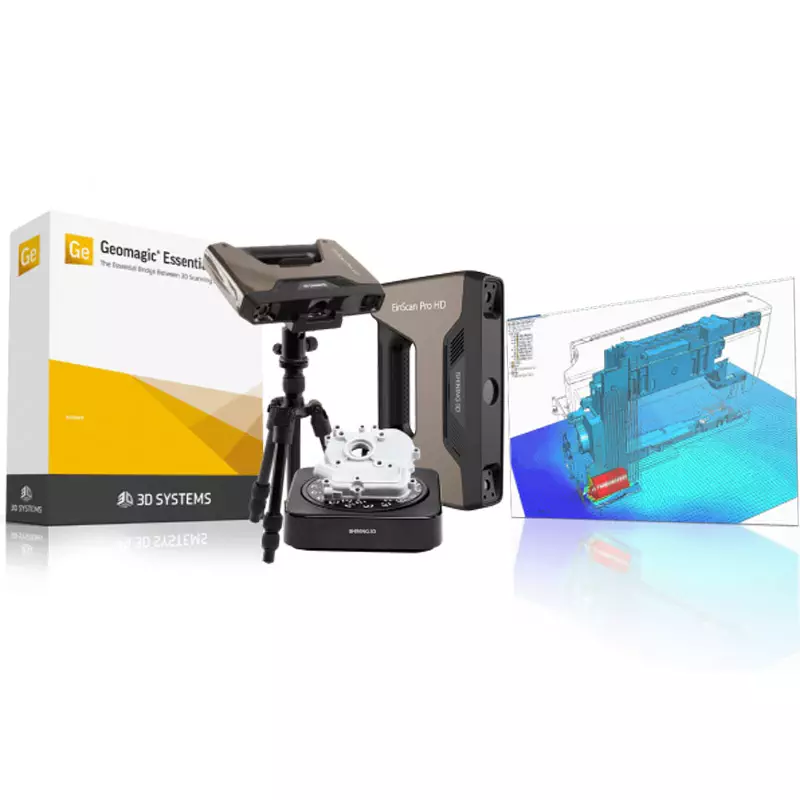

EinScan Reverse Engineering Design Bundle

A professional multi-functional 3D scanner with reverse engineering and CAD capabilities.

Technical Specifications

[1]. Volumetric accuracy refers to the relationship between 3D data accuracy and object size; the accuracy is reduced by 0.3mm per 100cm.
The conclusion is obtained by measuring the center of sphere under marker alignment.
[2]. Select this alignment when scanning objects with rich geometrical features on the surface.
[3]. Hybrid alignment means marker alignment and feature alignment can be switched automatically.
[4]. This alignment needs Color Pack assisting, and requires rich color texture information on the surface of the object.
SHINING 3D reserves the right to explain any alteration of the specifications and pictures. Please refer to einscan.com to find more information.

Scan Modes

Hanheld HD Scan

Handheld Rapid Scan

Fixed Scan with Turntable

Fixed Scan without Turntable

Scan Accuracy

Hanheld HD Scan: up to 0.45 mm

Handheld Rapid Scan: up to 0.1 mm

Fixed Scan with Turntable: 0.04 mm

(single shot accuracy)

Fixed Scan without Turntable: 0.04 mm

(single shot accuracy)

Volumetric Accuracy

Hanheld HD Scan: 0.3 mm/m (Markers

Alignment)

Handheld Rapid Scan: 0.3 mm/m

(Markers Alignment)

Fixed Scan with Turntable: N/A

Fixed Scan without Turntable: N/A

Scan Speed

Hanheld HD Scan: 10 – fps 3,000,000

points/s

Handheld Rapid Scan: 30 – fps 1,500,000

points/s

Fixed Scan with Turntable: Single Scan

0.5s

Fixed Scan without Turntable: Single Scan

0.5s

Point Distance

Hanheld HD Scan: 0.2 mm-3 mm

Handheld Rapid Scan: 0.25 mm-3 mm

Fixed Scan with Turntable: 0.24 mm

Fixed Scan without Turntable: 0.24 mm

Single Scan Range

Hanheld HD Scan: 209*160mm —

310*240m.

Handheld Rapid Scan: “same”

Fixed Scan with Turntable: “same”

Fixed Scan without Turntable: “same”

Depth of Field

Hanheld HD Scan: ±100 mm

Handheld Rapid Scan: ±100 mm

Fixed Scan with Turntable: ±100 mm

Fixed Scan without Turntable: ±100 mm

Working Distance

Hanheld HD Scan: 510 mm

Handheld Rapid Scan: 510 mm

Fixed Scan with Turntable: 510 mm

Fixed Scan without Turntable: 510 mm

Light Source

Hanheld HD Scan: LED

Handheld Rapid Scan: LED

Fixed Scan with Turntable: LED

Fixed Scan without Turntable: LED

Align Mode

Hanheld HD Scan: Marker Alignment,

Feature Alignment [2], Hybrid Alignment

[3] Handheld Rapid Scan: Markers

Alignment, Texture Alignment [4],

Feature Alignment, Hybrid Alignment.

Fixed Scan with Turntable: Turntable

Coded Targets, Feature, Markers, Manual

Alignment.

Fixed Scan without

Turntable: Markers, Feature, Manual

Alignment

Texture Scan

Hanheld HD Scan: Yes

(with Add-on: Color Pack)

Handheld Rapid Scan: Yes

(with Add-on: Color Pack)

Fixed Scan with Turntable: Yes

(with Add-on: Color Pack)

Fixed Scan without Turntable: Yes

(with Add-on: Color Pack)

Outdoor Operation

Set up the shelter or cover to avoid direct sunlight.

Special Objects for Scanning

For the transparent, highly reflective or

some dark objects, please spray powder

before scanning.

Software Included

ExScan Pro, Solid Edge SHINING 3D

Edition

Output Formats

OBJ; STL; ASC; PLY; P3 ; 3MF

Scanner Body Weight

1.25kg (include the USB3.0 cable);

Operating Temperature: 0-40℃;

Operating Humidity Range: 10-90%.

Supported OS

Win10; (64bit)

Recommended Configurations

Graphics card: NVIDIA GTX1080 and

higher;

Video memory: >4G, processor: I7-8700,

Memory: 64G;

Interface: high-speed USB 3.0

Required Configurations

Graphics card: Quadro card P1000 +

or

NVIDIA GTX660 and higher;

Processor: Intel (R) xeon E3-1230,

OR Intel (R) I5-3470, Intel (R) I7-3770;

Interface: high-speed USB 3.0;

Memory: 8G

Conclusion

When it comes to printers the EinScan Pro HD 3D Scanner is ideal for businesses, Engineers, Designers, Architects, and Schools for their printing requirements.
