EinScan SE & SP 3D Scanner
Elevate Your 3D Scanning Experience with the EinScan SE & SP 3D Scanner!Next generation of Desktop 3D Scanners to maximise your scanning experience and capability on your desktop, easy to use, fast scanning, user friendly and comes with enhanced efficiency. Perfect for 3D Scanning enthusiasts, hobyists, schools and entrepreneurs.
Introducing EinScan SE & SP 3D Scanner
2nd Generation Scanners – Maximising the scanning ability on your desktop
The EinScan 3D scanners are easy to use and operate, user friendly and fast scanning with enhanced efficiency.
Time is of the essence and capturing speed is vital. The EinScan SP takes 4 seconds for single scans and for a 360-degree scan using the turntable, it will take only 1 minute on the EinScan SP.
The EinScan SP takes 4 seconds for single scans and for a 360-degree scan using the turntable, it will take only 1 minute on the EinScan SP.

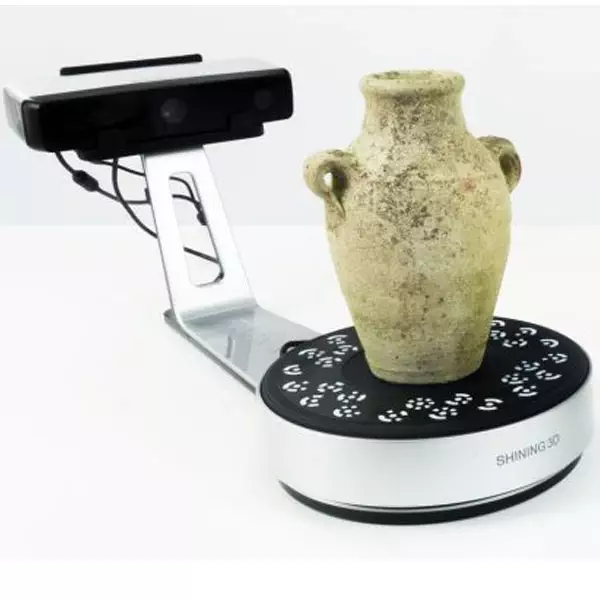

The EinScan SP features two scan modes for 3D scanning. Turntable mode allows you to capture objects under 200 x 200 x 200 mm with automatic rotational stitching. Free scan mode, allows you to mount the camera onto a tripod (tripod included with Platinum scanner) and 3D scan larger objects up to 700 x 700 x 700 mm.
Why Choose EinScan SE & SP 3D Scanner?
Intuitive Software
The clever 3D Scan software that comes with your 3D Scanner does the heaving lifting and makes it easy to use. 3D Scanning in the past has been a very complex and time-consuming procedure, but with the included software makes it easy work to capture quality 3D models.
Education
The reason why the EinScan SE is the choice for educators and newcomers is its ease of use and it delivers great performance even for non-technical users with no prior experience with 3D scanning.. The EinScan SE is the ideal 3D scanner as you immerse yourself in the world of 3D modeling. With its innovative auto stitching (the hardest job for any 3D Scanner operator is to manually align each scan), producing watertight 3D models ready to print straight away.
Engineers
The reason why the EinScan SP is the choice for engineers and digital artists is it’s ability to achieve higher accuracy higher precision for a single scan, capable of 0.05mm resolution! The secret is in the registration markers on both the turntable and available as stickers. The software will use these markers on the EinScan SP to perform an accurate auto alignment.
Technical Specifications
| Model | EinScan-SE – Elite | EinScan-SP – Platinum | ||
| Scan Mode | Fixed Scan | Auto Scan | Fixed Scan | Auto Scan |
| Mode of Alignment | Feature, Manual | Turntable, Manual | Feature, Markers, Manual | Turntable, Markers, Manual, Turntable Coded Targets |
| Single Shot Accuracy | ≤0.01mm | ≤0.05mm | ||
| Min. Scan Volume | 30 x 30 x 30mm | |||
| Range of Single Capture | 200 x 150mm | |||
| Scan Speed | <8 seconds | <2 minutes | <4 seconds | <1 minute |
| Point Distance | 0.17 – 0.2mm | |||
| Texture | Yes | |||
| File Format | OBJ, STL, ASC, PLY | |||
| Camera Resolution | 1.3 Mega Pixels | |||
| Light Source | White Lights | |||
| Stand-off Distance | 290 ~ 480mm | |||
| Computer Requirements | 1 ×USB 2.0 or 3.0 – Win7, Win8, Win10 (64 bit), Dual-core i5 or higher, >8 G | 1 ×USB 2.0 or 3.0 – Win7, Win8, Win10 (64 bit), Dual-core i5 or higher, >16 G | ||
| Weight (unpacked) | 2.5kg | 4.2kg | ||
| Weight (packed) | 4.9kg | 7.0kg | ||
| Dimension | 570 x 210 x 210mm | |||
| Power Supply | 50W | |||
| Input Voltage | DC: 12V, 3.33A | |||
| Calibration Board | Standard | HD | ||
| Turntable | Standard | Turntable with Markers | ||
| Load Capacity of Turntable | 5kg | |||
Conclusion
When it comes to scanners the EinScan SE & SP 3D Scanner is ideal for Education, Engineering and various other industries for quality scanning project requirements.
“Make the smart choice today for a better tomorrow.”
Get Your EinScan SE & SP 3D Scanner NOW!
Ready to take your 3D scanning projects to the next level? Click below to shop now and benefit from our exclusive offers!
