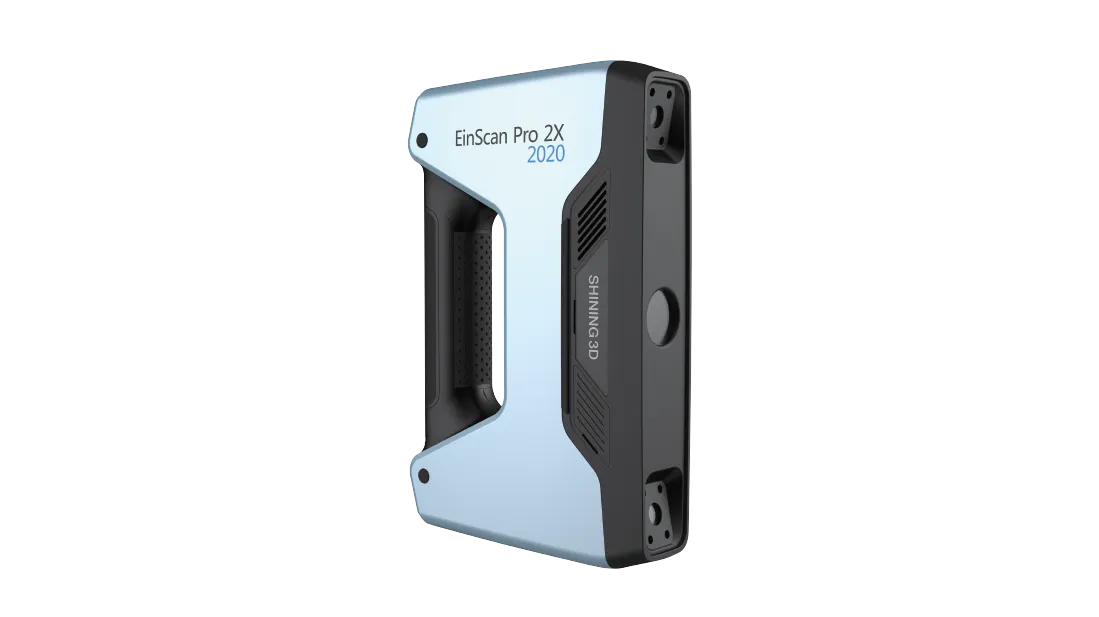

EinScan Pro 2X 2020 3D Scanner
Elevate Your 3D Printing Experience with the EinScan Pro 2X 2020 3D Scanner!Introducing EinScan Pro 2X 2020 3D Scanner
Easy | High-Quality | Portable | Acurate – Multi-Functional 3D Scanner
EinScan Pro 2X 2020, the next generation in haldheld 3D scanners has the latest technology, implemented for you based on all the feedback received from users. The scanner is much faster and more accurate than ever, this portable EinScan Pro 2X 2020 improves efficiency for creating high quality 3D modeling.
Why Choose EinScan Pro HD 3D Scanner?
Truly Portable and Versatile, High Resolution Handheld 3D Scanner
Portable & User-friendly Design
EinScan Pro 2X anywhere like a laptop, enjoy plug-and-play installation
and unlimited scanning experience.
(Package Size) | 37 x 36.5 x 13.5 mm
(Package Weight) | 1.13 kg
Outstanding Scan Performance
Scan Speed
(Handheld Rapid Scan) | 30fps – 1.5 million points/s
Scan Accuracy
(Fixed Scan) | 0.04mm
Volumetric Accuracy
(Handheld Scan Modes) | 0.1mm + 0.3mm/m
Minimum Point Distance
(Handheld HD / Rapid Scan) | 0.2mm

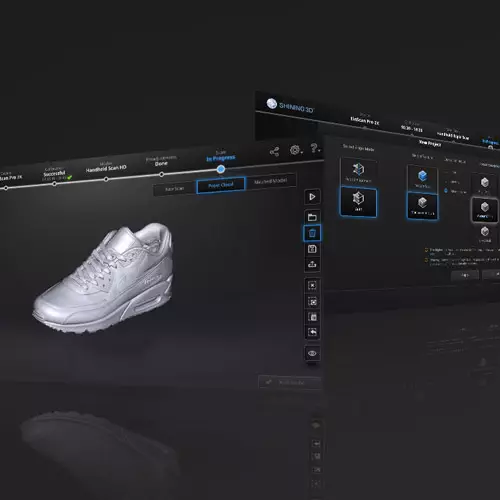

New Scanning Software EXSCAN PRO
Brand-new UI and Workflow
New Operation Mode Option
Allows users a faster scanning experience during operation and set the resolution
option afterwards during the data processing, which improves scanning efficiency.
High Compatibility
Outputs standard file formats including STL, OBJ, PLY, 3MF, ASC and P3

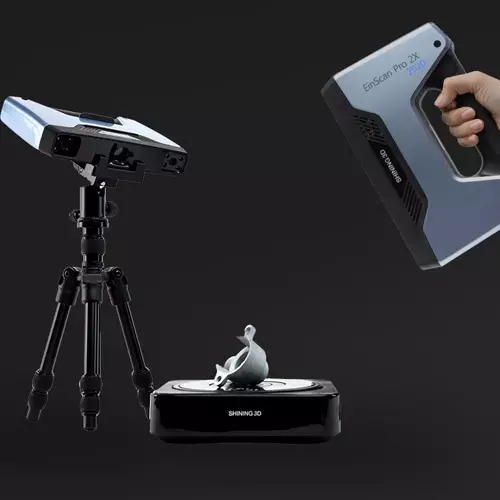

Versatile Scan Modes & Align Modes
Scan Modes:
Handheld Rapid Scan, Handheld HD Scan, Fixed Scan.
Align Modes:
Feature alignment, markers alignment, turntable coded targets alignment,
and manual alignment.
Accuracy of EinScan Pro Series Scanners
Factory tested accuracy according to VDI/VDE 2634 standards.

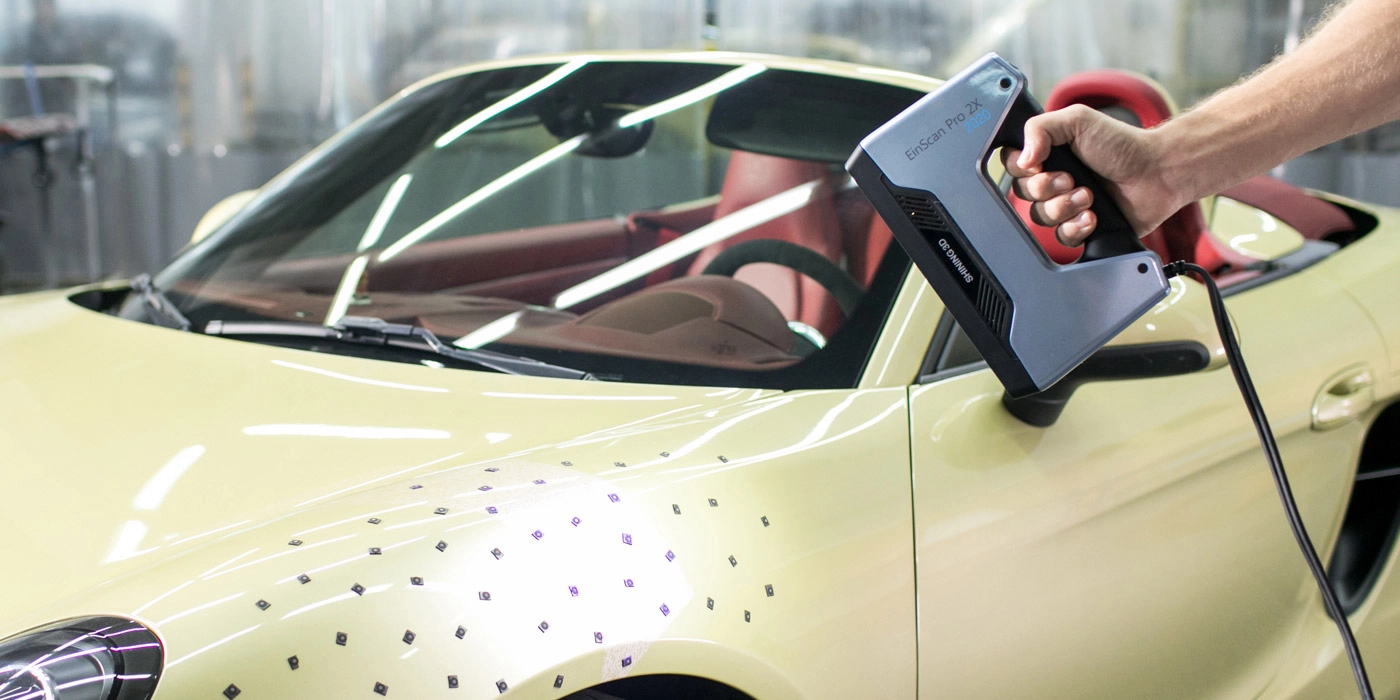

3D Scanning for reverse engineering.

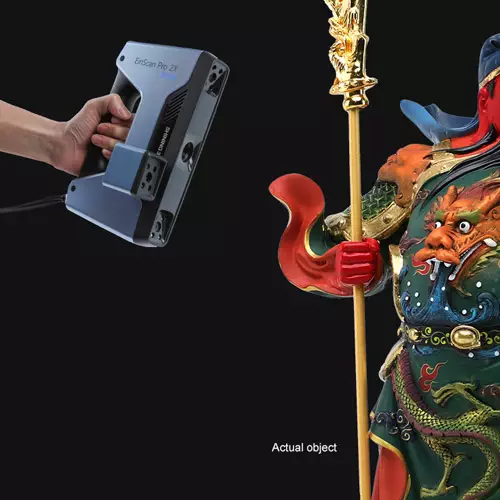

Full-Color Scan
Technical Specifications
[1]. Volumetric accuracy refers to the relationship between 3D data accuracy and object size; the accuracy is reduced by 0.3mm per 100cm. The conclusion is obtained by measuring the center of sphere under marker alignment.
[2]. This alignment needs Color Pack assisting, and requires rich color texture information on the surface of the object.
[3]. Select this alignment when scanning objects with rich geometrical features on the surface.
[4]. Hybrid alignment means marker alignment and feature alignment can be switched automatically.
Scan Modes

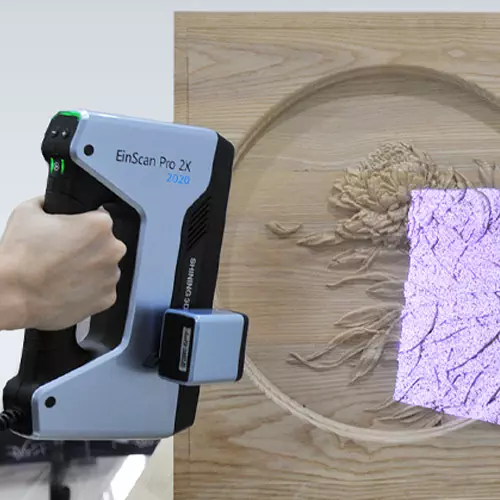

Hanheld HD Scan
Handheld Rapid Scan

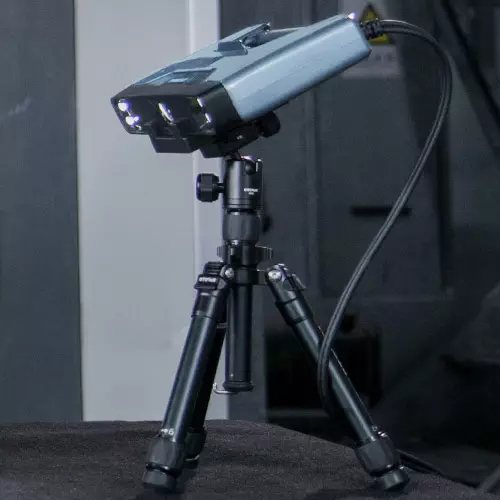

Fixed Scan with Turntable
Fixed Scan without Turntable
Scan Accuracy
Hanheld HD Scan: up to 0.45 mm
Handheld Rapid Scan: up to 0.1 mm
Fixed Scan with Turntable: 0.04 mm
(single shot accuracy)
Fixed Scan without Turntable: 0.04 mm
(single shot accuracy)
Volumetric Accuracy
Hanheld HD Scan: 0.3 mm/m (Markers
Alignment)
Handheld Rapid Scan: 0.3 mm/m
(Markers Alignment)
Fixed Scan with Turntable: N/A
Fixed Scan without Turntable: N/A
Scan Speed
Hanheld HD Scan: 10 – fps 3,000,000
points/s
Handheld Rapid Scan: 30 – fps 1,500,000
points/s
Fixed Scan with Turntable: Single Scan
0.5s
Fixed Scan without Turntable: Single Scan
0.5s
Point Distance
Hanheld HD Scan: 0.2 mm-2 mm
Handheld Rapid Scan: 0.2 mm-2 mm
Fixed Scan with Turntable: 0.16 mm
Fixed Scan without Turntable: 0.16 mm
Single Scan Range
Hanheld HD Scan: 150*120mm —
250*200m.
Handheld Rapid Scan: “same”
Fixed Scan with Turntable: “same”
Fixed Scan without Turntable: “same”
Depth of Field
Hanheld HD Scan: ±100 mm
Handheld Rapid Scan: ±100 mm
Fixed Scan with Turntable: ±100 mm
Fixed Scan without Turntable: ±100 mm
Working Distance
Hanheld HD Scan: 400 mm
Handheld Rapid Scan: 400 mm
Fixed Scan with Turntable: 400 mm
Fixed Scan without Turntable: 400 mm
Light Source
Hanheld HD Scan: LED
Handheld Rapid Scan: LED
Fixed Scan with Turntable: LED
Fixed Scan without Turntable: LED
Align Mode
Hanheld HD Scan: Marker Alignment,
Feature Alignment [2], Hybrid Alignment
[3] Handheld Rapid Scan: Markers
Alignment, Texture Alignment [4],
Feature Alignment, Hybrid Alignment.
Fixed Scan with Turntable: Turntable
Coded Targets, Feature, Markers, Manual
Alignment.
Fixed Scan without
Turntable: Markers, Feature, Manual
Alignment
Texture Scan
Hanheld HD Scan: Yes
(with Add-on: Color Pack)
Handheld Rapid Scan: Yes
(with Add-on: Color Pack)
Fixed Scan with Turntable: Yes
(with Add-on: Color Pack)
Fixed Scan without Turntable: Yes
(with Add-on: Color Pack)
Outdoor Operation
Special Objects for Scanning
some dark objects, please spray powder
before scanning.
Printable Data Output
directly to 3D printing.
Software Included
Edition
Output Formats
Scanner Body Weight
1.13kg (include the USB3.0 cable);
Supported OS
Recommended Configurations
higher;
Video memory: >4G, processor: I7-8700,
Memory: 64G;
Interface: high-speed USB 3.0
Required Configurations
or
NVIDIA GTX660 and higher;
Processor: Intel (R) xeon E3-1230,
OR Intel (R) I5-3470, Intel (R) I7-3770;
Interface: high-speed USB 3.0;
Memory: 8G
Conclusion
When it comes to printers the EinScan Pro 2X 2020 3D Scanner is ideal for businesses, Engineers, Designers, Architects, and Schools for their printing requirements.
“Make the smart choice today for a better tomorrow.”
Get Your EinScan Pro 2X 2020 3D Scanner NOW!
Ready to take your 3D scanning projects to the next level? Click below to shop now and benefit from our exclusive offers!
