UP mini 2 3D printer

UP Mini 2

Easy. Pure. Portable
its-here

Small but Powerful

Everyone’s favourite little desktop 3D printer, the UP Mini, has been given a makeover both inside and out. The UP Mini 2 has been upgraded with new features like controlling the printer through WiFi, HEPA filtration system, touch screen control and resume on power outage! The Up Mini 2 packs a powerful punch for its size while still remaining affordable and easy to use.

3D Print from your iPad

Control at the palm of your hand

Are you using an iPad? The newest software, UP Studio, has made it that much easier to wire up your iPad to the UP Mini 2, without actual wires! How awesome is that?



You can control the printer straight from your iPad! Simply connect your printer to the iPad via WiFi. Just download the app for your iPad from Apple App Store and have the ability to print with your UP Mini 2 at your finger tips.

Made for MakerSpace

Launch your classes into success

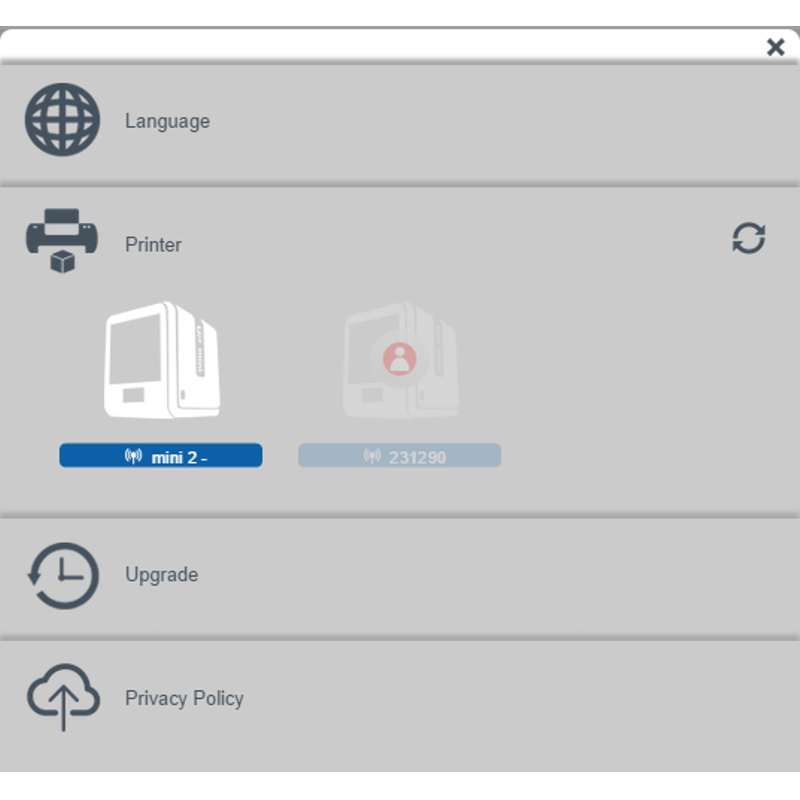

It can get a bit chaotic trying to manage a handful of printers in one room. The UP Studio allows you to personalise and name printers individually; commandeer your fleet of UP printers from one centralised hub, be it an iPad, laptop or desktop.

wifi-crop

Active Air Filtering

All 3d printers when printing with ABS or PLA have been characterized as high emitters of Ultra Fine Particles. See the report on UFP emissions: http://goo.gl/Eb2SAo Having a 3d printer with HEPA air filtration system dramatically reduces your exposure, expecially in an office or classroom enviroment.

dan4

Usability

3D printing made easy

Combining users’ favourite features from the UP BOX and UP Plus 2, the UP mini 2 is now capable of reducing exposure to particle emissions with the built-in HEPA filtration system; auto-levelling and auto height detection; improved printing resolution of 0.15 mm per layer.



The touch screen on the printer is a new added feature which allows for ease-of-access control. You can also re-print up to 10 most recently printed files, it’s all stored in the printer! UP mini 2 tries its best to make it convenient for you so you can print on the go.

Connectivty

Print wirelessly through the network

You can now connect and control your UP mini 2 3D printer remotely via WiFi. This will give you, as a user, the ability to print without being in the same room.



All you need to do is set-up your UP mini 2 to join the same network as your computer or device with WiFi access and you’re good to go. Too easy!



No more being tethered to the computer; make your workspace and floor cable-free.

wifi
ba3

Portability

Take your UP mini 2 with you

Transport your UP mini 2 safely and with style: the aluminium handle makes it easy to carry. Simply lift the handle up for hassle-free relocation of the printer and push it back down for an unobtrusive and seamless touch when you are done.



Not finished that print, but need to go? Simply switch off the mini 2 mid-print and take the printer with you! Yes, you can switch on and continue printing where it left off. The new UP mini 2 is one neat little printer, packed full of features!

UP mini 2 3D Printer Specifications

Build volume:  120 x 120 x 120 mm (W x D x H) – That’s 1.7 litres of making space
Support Material:  Smart Supports. Intelligent snap off support material, printed in the same material, printed at a lower density and built automatically by the included 3D print software
Selectable layer resolution:  0.15mm (150 micron), 0.2mm (200 micron), 0.25mm, 0.3mm, 0.35mm – That’s super fine 150 micron detail!
Raftless printing:  Yes
Printer Dimensions:  255mm width,365mm depth, 385mm height
Platform:  Fully heated platform bed – factory-calibrated platform levelling
Touch Screen:  Yes
Printer Weight:  8kg
Power input:  110-240VAC, 50-60 Hz, 90W
Connectivity:  USB , WIFI (becomes part of your network)
Consumables:  1.75mm ABS, ABS+ Plastic Filament, 1.75mm, PLA Plastic Filament, non-proprietary third-party materials
Warranty:  12 month return to base
Software:  UP Studio printing software included free
Operating System:  Windows (7, 8, 10) 32/64 bit and MAC
Unboxing time to print:  15-30 minutes

Everything you need is in the box, ready for you to start making your ideas into real parts. You don’t require any extras. We even give you a free roll of white ABS plastic filament included with your new 3D Printer.



  • UP mini 2 Desktop 3D Printer
  • Spool and Tool holder
  • One free spool of 1.75mm tough ABS plastic filament
  • Sample ABS & PLA filaments (try it before you buy it!)
  • Perfboard x 1 | UP Flex Smooth board x 1
  • USB Cable
  • Wide selection of tools to maintain and service the printer



The included Smart 3D Print software included with your UP Mini 2 3D Printer is very easy to use and is very smart. It automatically calculates the required support material for the most demanding 3D models. Just load any STL file (Just about every 3D CAD modelling software can export to STL). It doesn’t matter how complex your 3D model is, it will churn through the 3D model at lightning speeds and then start printing it out.

thumb



  • Scale, Rotate, Move & Print
  • Supported File Types: STL
  • Extrusion temperatures 260 and 200 degrees
  • Print Preview with material usage and time estimates
  • Automatic placement
  • Rotate, resize, Scale, Move 3D object





  • Select layer thickness
  • Select print speed vs. quality
  • Variable fill of models with honeycomb fill
  • Fine to large honeycomb mesh
  • Smart Support
  • Repeat last print
  • Automatic Support material angles, 10 to 80 degrees




For all your drivers, manuals, replacement parts and expert help, we have got you covered.


UP Studio on the iPad and PC

The new UP Studio app is compatible with the iPad and PC. Controlling the printer and printing has never been easier.
The UP Studio interface has been revamped to put the power back into your hands

Are you ready for the ultimate 3D Printing experience?
